Single Switch

The Single switch widget provides a toggle switch interface for controlling binary HMI Device states — turning a relay, light, or motor ON/OFF, or enabling and disabling HMI Device features by updating attributes.

The widget follows four functional principles:

1. Initial state — on dashboard load, the widget reads the current HMI Device state from a configured source (attribute, or telemetry) and reflects it in the switch position.
2. Toggle action — when the user flips the switch, the widget executes the configured action: updates an attribute, or writes a telemetry record.
3. Visual feedback — the switch track and knob change color based on state (ON → active color, OFF → neutral color), giving instant recognition of the HMI Device’s status.
4. Synchronization — if the HMI Device state changes externally (via automation or rule chains), the widget receives the update and moves the switch to match the actual state.

• Three behavior sections — Initial state, Turn On, Turn Off — each independently configurable.
• Supports shared/server attributes, and telemetry as state source and action target.
• Disabled state: locks the switch when a HMI Device is offline, in maintenance, or under an alarm condition.
• Configurable switch and knob colors per state, custom ON/OFF labels, and layout options.

1. Open the dashboard in edit mode. Click Add widget in the top toolbar, or click the Add new widget icon in the center of an empty dashboard.
2. In the widget bundle selection dialog, find and click Control widgets.
3. Select the Single switch widget.
4. Configure the datasource, behavior, and appearance, then click Add.

All settings in this section use Basic mode — a quick-start configuration covering the essentials. For finer widget controls like title font, card style, and tooltip, switch to the Advanced tab.

Select the source of state data:

• Device — a specific HMI Device; the widget reads and writes state for this HMI Device.
• Entity alias — a set of entities matched by an entity alias; use this when the target HMI Device is selected dynamically at runtime.

Defines how the widget determines its ON/OFF position when the dashboard loads.

Action type	Description	Configuration	Action result converter
Do nothing	State is set manually — no data is queried.	Value: On / Off	—
Get Attribute	Reads an attribute value from the entity.	Attribute scope: Any / Client / Server / Shared; Attribute key: e.g. powerState	None: specify the value meaning On. Function: custom converter.
Get Time Series	Retrieves the latest value of a telemetry key.	Time series key: e.g. state	None: specify the value meaning On. Function: convert telemetry to Boolean.
Get Alarm Status	Derives state from active alarms.	Alarm severity: Critical / Major / Minor / Warning / Indeterminate; Alarm types: Any or selected	None: specify when active alarm means On. Function: map alarm data to Boolean.
Get Dashboard State ID	Reads the current dashboard state ID.	Result type: String / Integer / Double / Boolean / JSON	None: specify when ID means On. Function: convert ID to Boolean.
Get Dashboard State Object	Reads the full dashboard state as JSON.	Result type: String / Integer / Double / Boolean / JSON	None or Function.

Defines the action executed when the user flips the switch to ON.

Action type	Description	Configuration
Set Attribute	Updates a HMI Device attribute to the ON value.	Attribute scope: Server or Shared; Attribute key: e.g. powerState; Value: Constant (e.g. true) or Function.
Add Time Series	Writes a new telemetry record representing ON.	Time series key: e.g. state; Value: Constant or Function.

Mirrors the Turn On configuration but uses values representing the OFF state.

Action type	Description	Configuration
Set Attribute	Updates a HMI Device attribute to the OFF value.	Attribute scope: Server or Shared; Attribute key: e.g. powerState; Value: Constant (e.g. false) or Function.
Add Time Series	Writes a new telemetry record representing OFF.	Time series key: e.g. state; Value: Constant or Function.

Defines when the switch becomes non-clickable. In the disabled state the switch turns gray and ignores user input — use this when a HMI Device is offline, under maintenance, or should not be controlled during an active alarm.

Action type	Description	Configuration
Do nothing	Manually sets a static disabled appearance.	Value: On / Off
Get Attribute	Reads an attribute to decide if the switch should be locked.	Scope: Any / Client / Server / Shared; Key: e.g. enabled; converter: None or Function.
Get Time Series	Uses the latest telemetry to determine disabled state.	Key: e.g. availability; converter: None or Function.
Get Alarm Status	Disables when an alarm of selected type or severity is active.	Alarm severity and Alarm types; converter: None or Function.
Get Dashboard State ID / Object	Disables based on the current dashboard state.	Result type: String / Integer / Double / Boolean / JSON; converter: None or Function.

Controls the switch layout, colors, labels, and icon.

Setting	Description
Layout	Position of the switch within the widget: Right, Left, or Center.
Auto scale	Automatically adjusts font size and element scaling when the widget is resized.
Label	Descriptive text displayed beside the switch, like Ventilation or Power.
Icon	Optional icon shown to the left of the label to identify the controlled HMI Device or function.
Switch color	Color of the switch track (background line) in each state: On / Off / Disabled.
Tumbler color	Color of the switch knob in each state: On / Off / Disabled.
On label / Off label	Custom text and color shown next to the switch to communicate the current state.

Setting	Description
Background	Solid color or image background for the card.
Show card buttons	Enable the Fullscreen toolbar button.
Card border radius	Corner rounding in pixels.
Card padding	Spacing between card content and its border.

The Single switch supports the Widget header button action — a button placed in the widget header that triggers a configured action when clicked.

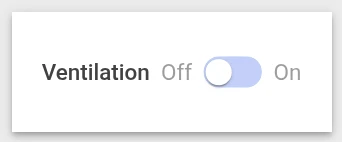

Scenario: A Ventilation Relay HMI Device subscribes to updates of the powerState shared attribute from iRis Cloud. When the attribute value changes, the HMI Device adjusts its physical relay state accordingly.

Goal: Add a Single switch widget that reads the current powerState value and lets the user flip the relay ON or OFF by updating the attribute.

Prerequisites: Create a HMI Device named Ventilation Relay (register its license — see iRis HMI Device Connectivity Guide) and add a shared attribute:

• Key name: powerState
• Data type: Boolean
• Value: true

Step 1. Add the widget. Open the dashboard in edit mode, click Add widget, select Control widgets, then choose Single switch.

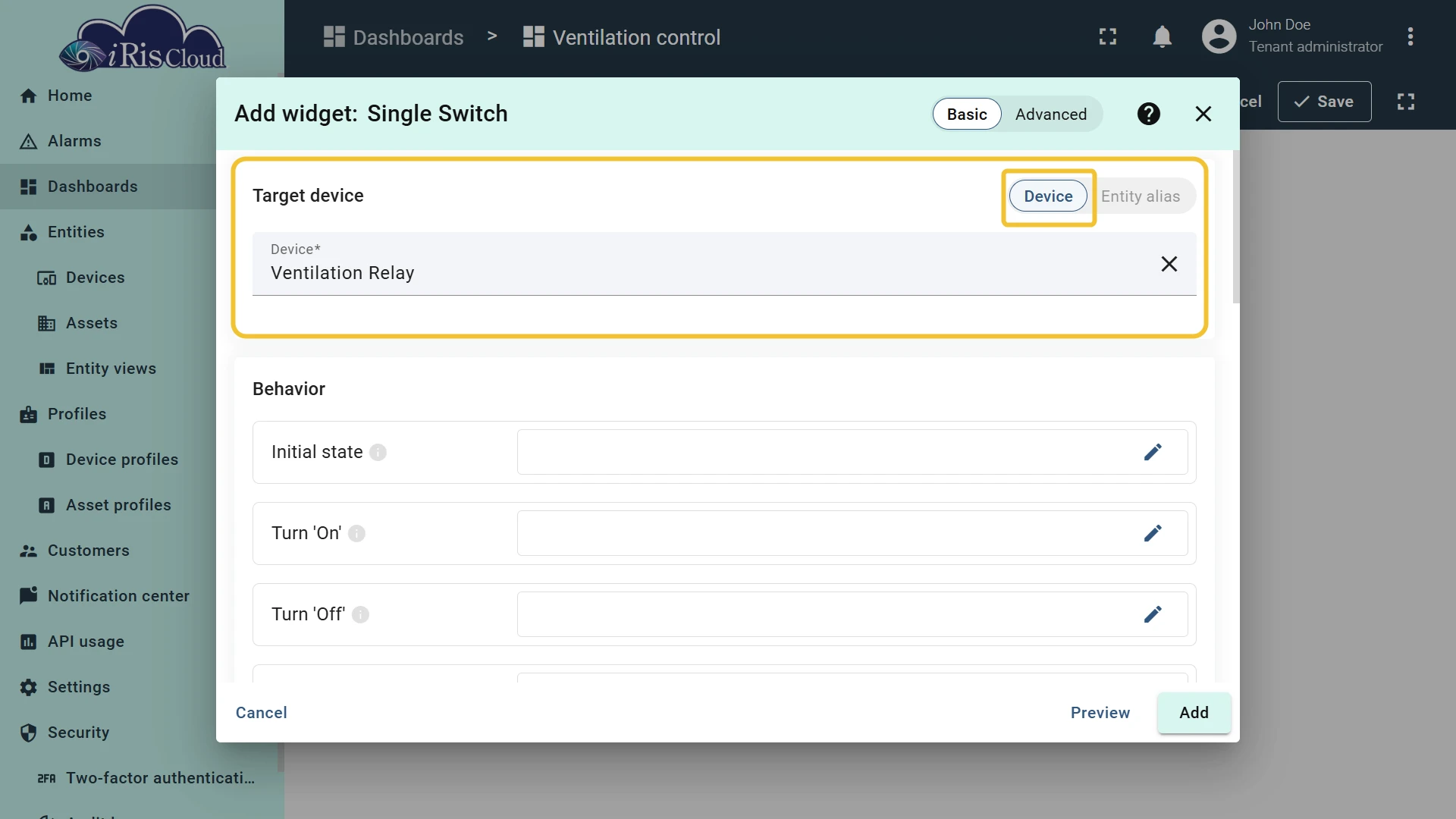

Step 2. Configure the datasource. Set Datasource type to Device, then select Ventilation Relay.

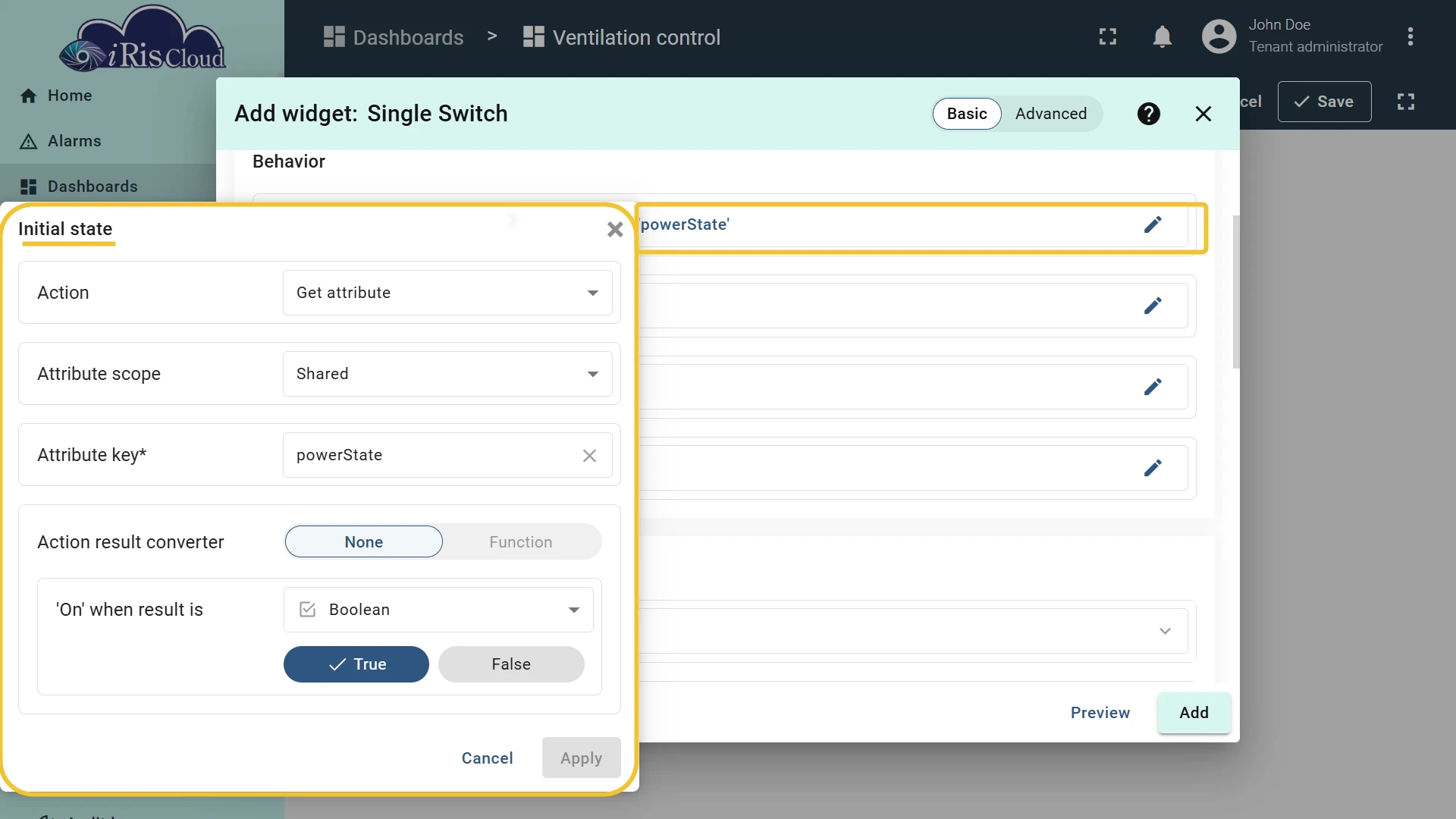

Step 3. Configure Initial state. Set the behavior so the switch reads the current relay state on load:

• Action: Get Attribute
• Attribute scope: Shared
• Attribute key: powerState
• Action result converter: On when result is true (Boolean)

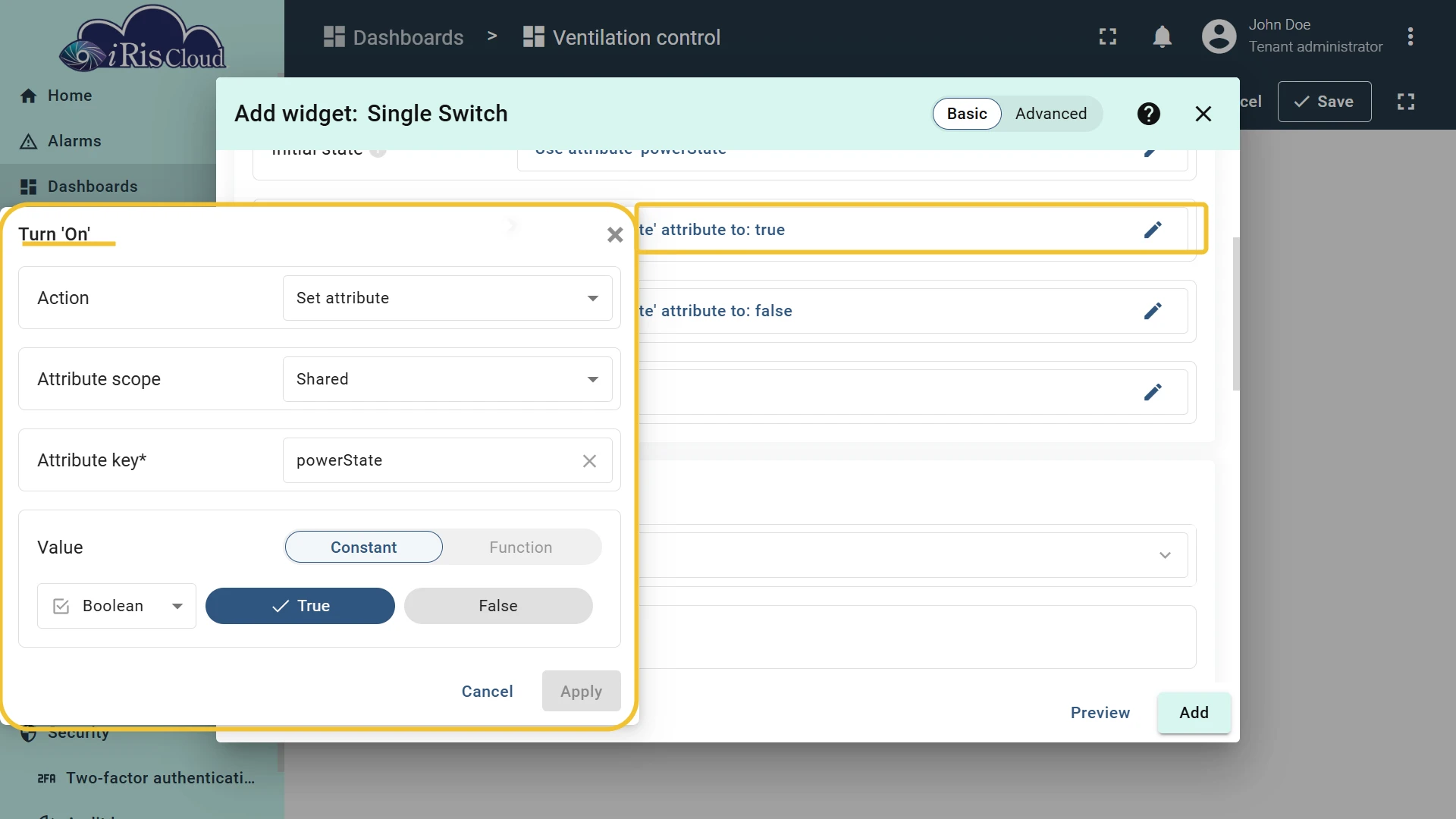

Step 4. Configure Turn On. Set the action triggered when the user flips the switch to ON:

• Action: Set Attribute
• Attribute scope: Shared
• Attribute key: powerState
• Value: Constant → true (Boolean)

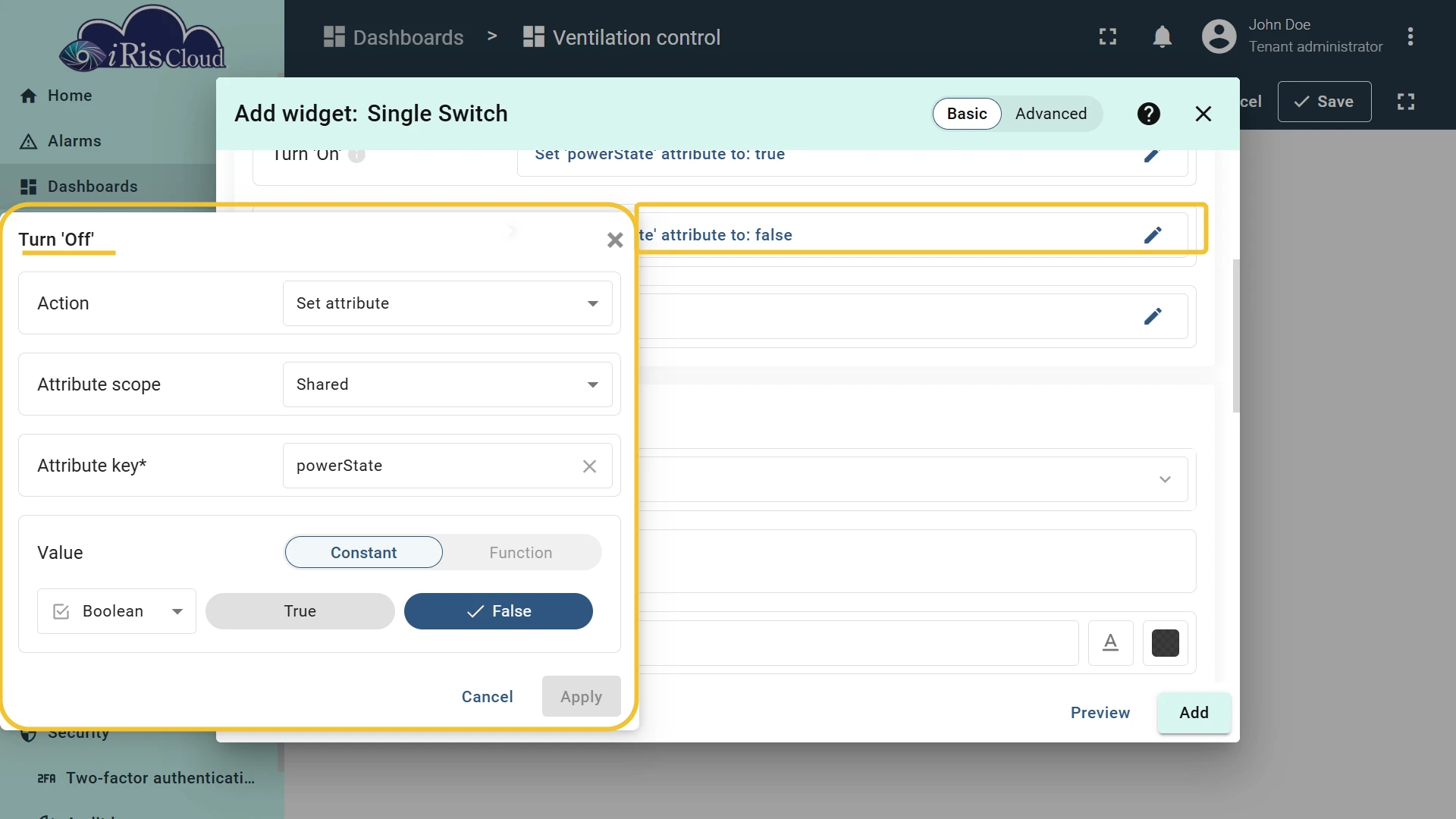

Step 5. Configure Turn Off. Set the action triggered when the user flips the switch to OFF:

• Action: Set Attribute
• Attribute scope: Shared
• Attribute key: powerState
• Value: Constant → false (Boolean)

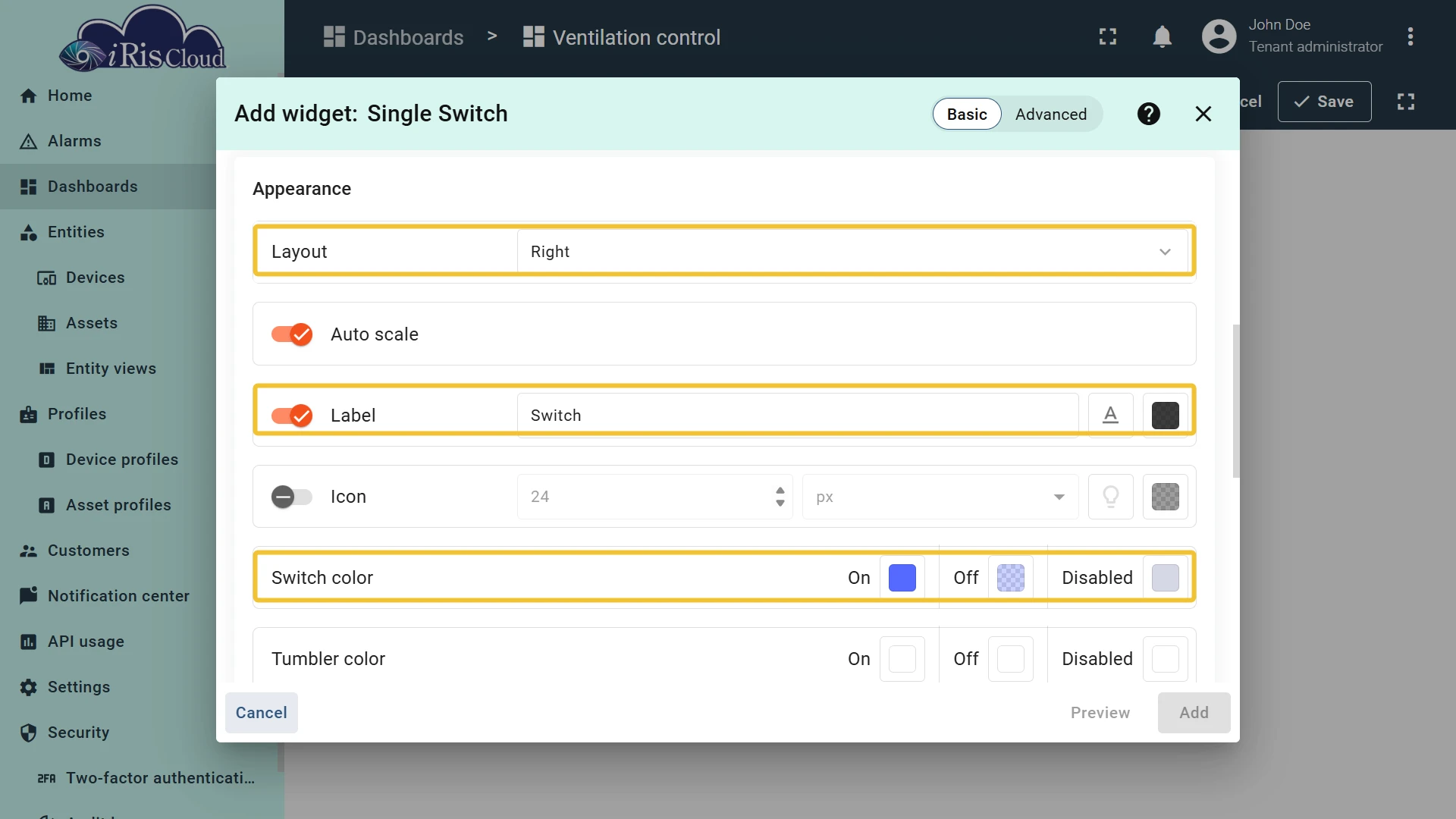

Step 6. Configure appearance. Set the following:

• Layout: Right
• Label: Ventilation
• Switch color: On → #4CAF50, Off → #AF4C4E66
• On label: On / Off label: Off

Step 7. Save. Click Add, resize and reposition as needed, then click Save on the dashboard toolbar.

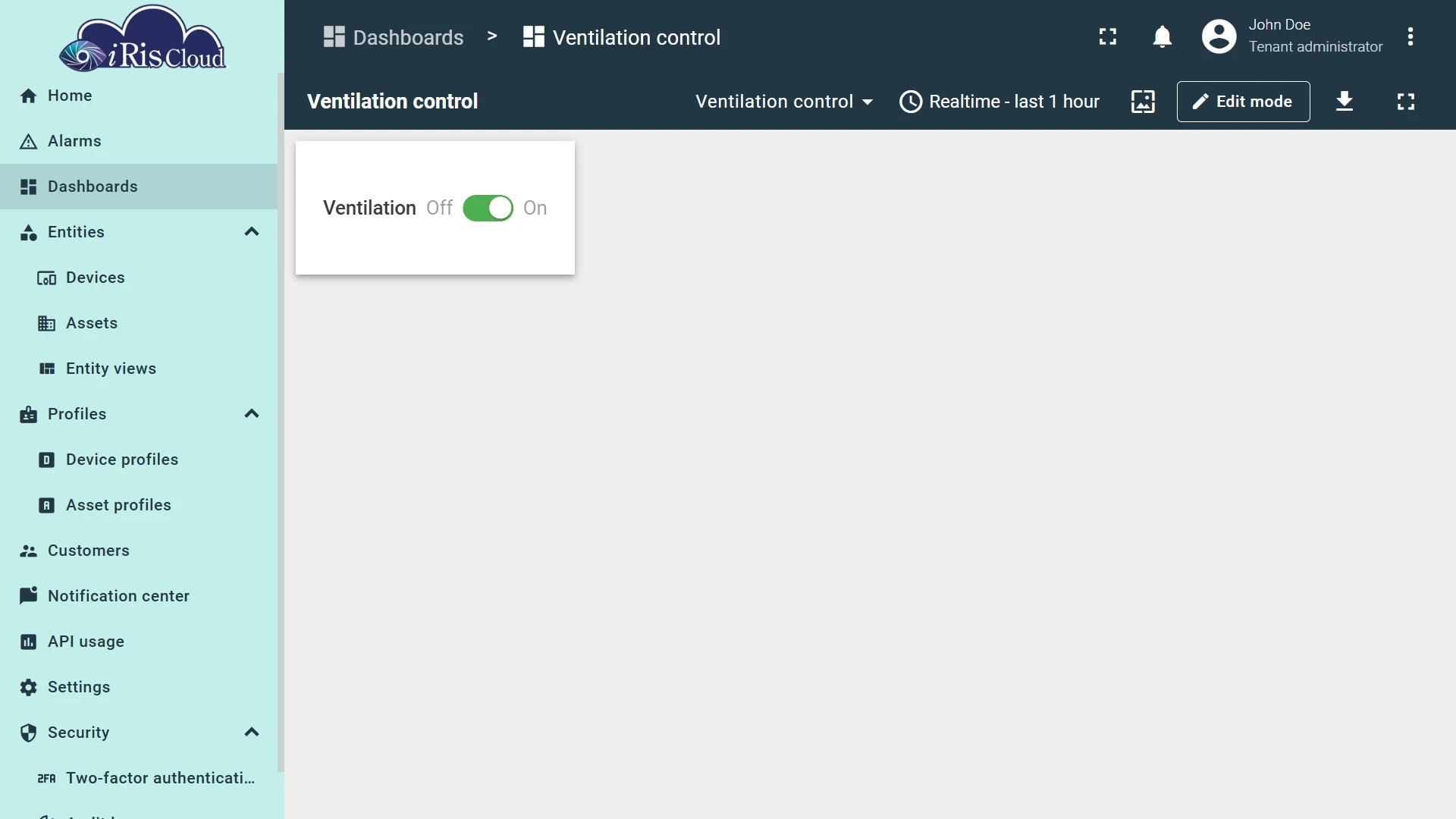

Result: The widget reads powerState from the Ventilation Relay HMI Device. If powerState = true, the switch is green and in the ON position. If powerState = false, the switch is red and in the OFF position.

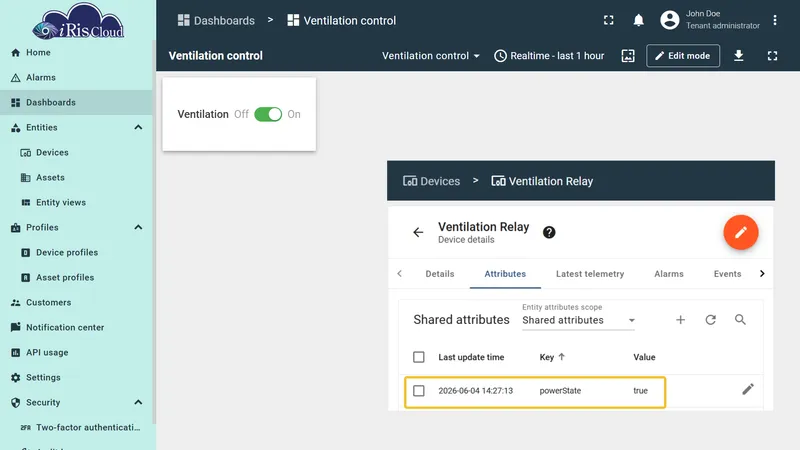

Flipping the switch updates the powerState attribute on iRis Cloud. The Ventilation Relay HMI Device, subscribed to this attribute, receives the updated value and adjusts its physical relay state automatically.

Switch does not reflect the correct initial state

Cause	Solution
Wrong attribute key or scope	Verify the Attribute key and Scope in the Initial state section match the actual attribute on the HMI Device.
Attribute not set on HMI Device	Open Devices → Attributes and confirm the attribute exists and has a value.
Action result converter mismatch	Check that the converter correctly maps the attribute value to Boolean — for example, On when result is true.

Flipping the switch has no effect on the HMI Device

Cause	Solution
Wrong action type	Confirm Turn On and Turn Off use the correct action type (Set Attribute, or Add Time Series) for your HMI Device.
HMI Device not subscribed to attribute updates	Confirm the HMI Device firmware subscribes to the relevant shared attribute before expecting automatic responses.

Switch is stuck in Disabled state

Cause	Solution
Disabled state condition is always true	Review the Disabled state configuration and verify the source value (attribute, telemetry, or alarm) only activates disabled when intended.
Active alarm blocking control	Check if an alarm of the configured type and severity is active. Resolve the alarm or adjust the Disabled state filter.
